Thermax offers destromat pyrolytic incinerators specifically designed to treat hazardous solid waste. Incinerators are designed to achieve the desired Destruction & Removal Efficiency (DRE) along with emission norms laid down by the Central Pollution Control Board.
Solid Waste Management
Thermax provides a complete range of water and wastewater treatment products with modular plug and play systems and online product water quality monitoring options.
Standard products ensure fast delivery, low maintenance and easy installation with less civil/site work.
Products

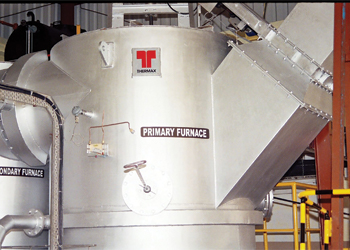

Incinerator
Unique Features
- Multi-chamber design
- Tested and certified by Central Pollution Control Board(CPCB)
- Technical registration with DGS and D
- Adequate instrumentation for safety and control
Options Available
- Heat recovery system and auto feeding mechanism version for the below range are also available
- Higher capacity units in the range of 300-1500 kg/hr.
- VS with venture scrubber
Technical Specifications
| Type of Waste | Incinerator Burning Capacity(Kg/hr) | |||||||
|---|---|---|---|---|---|---|---|---|
| PGVS30 | PGVS40 | PGVS50 | PYVS75 | PYVS100 | PYVS200 | PYVS300 | PYVS400 | |
| 0 | 8 | 12 | 16 | 35 | 50 | 70 | 110 | 125 |
| I | 11 | 17 | 22 | 45 | 70 | 100 | 135 | 170 |
| II | 16 | 25 | 35 | 65 | 85 | 135 | 185 | 230 |
| III | 14 | 23 | 32 | 55 | 65 | 110 | 170 | 250 |
| IV | 12 | 17 | 22 | 35 | 50 | 55 | 80 | 110 |
