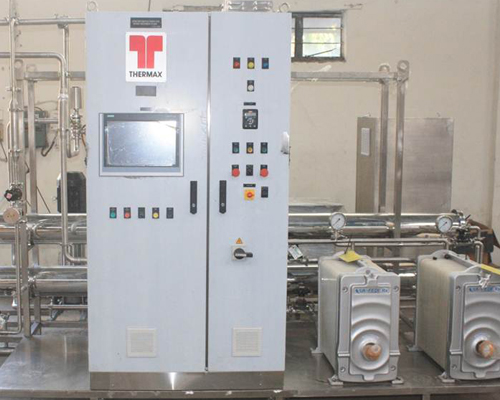

GenmaX is a complete skid based plug and play system for purified water generation complying with USP requirements and meeting the specifications for high purity water.
PHARMACEUTICAL RO
Thermax provides a complete range of water and wastewater treatment products with modular plug and play systems and online product water quality monitoring options.
Standard products ensure fast delivery, low maintenance and easy installation with less civil/site work.
GenmaX
Salient Features
- PLC based fully automated system for operational comfort
- VFD control for flow control during purified water generation and sanitisation
- Uniform and comprehensive documentation, DQ, IQ & OQ
- Minimum dead lag construction to minimise microbial growth
Standard Capacities
- 500 LPH to 6000 LPH
Inlet and Outlet Design Parameters
| Inlet Parameters | Outlet Parameters | ||
|---|---|---|---|
| TDS | < 100 ppm | pH | 5.0 – 7.0 |
| Total Hardness as CaCO3 | < 5 ppm | Conductivity | < 1.3 u mhos/cm |
| Silica | < 2 ppm | Microbial Count | < 100 CFU/ML |
| SDI | < 1 | TOC | < 500 ppb |
| TSS | Nil | ||
| Turbidity | Nil | ||
| pH | 7.5 – 8.5 | ||
