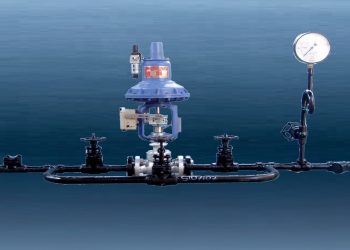

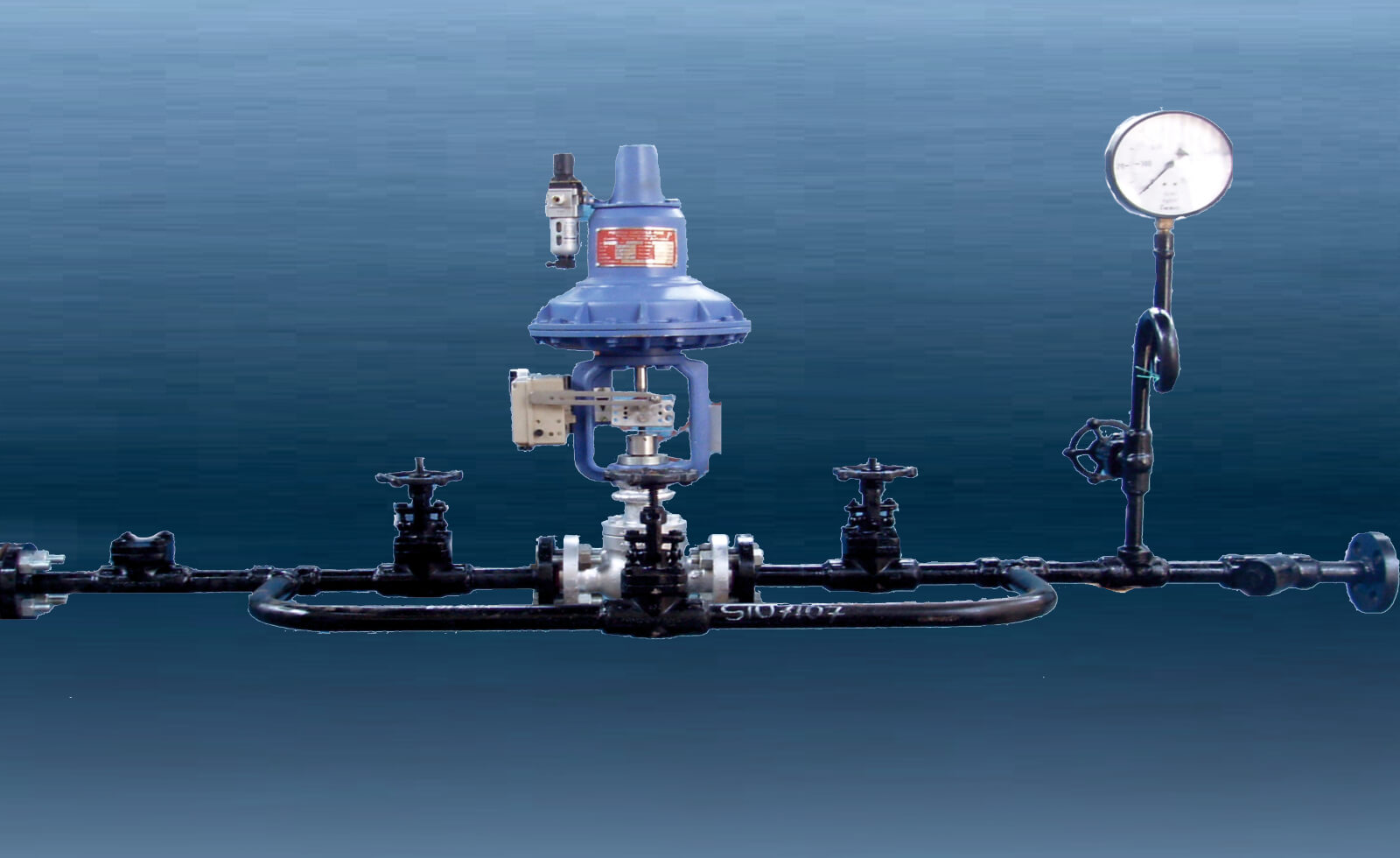

A fixed nozzle desuperheater utilizes high performance fixed geometry nozzles to reduce the steam temperature by directly injecting water inside the superheated steam flow. The spray water quantity is controlled by an external control valve which responds to feedback from a controller and downstream temperature sensor.
PRESSURE REDUCING AND DESUPER HEATING SYSTEM

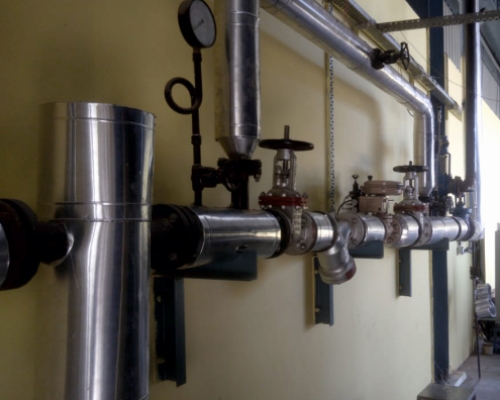

A Pressure Reducing and Desuper Heating System (PRDSH) is prefabricated module used to desuperheat high pressure superheated steam to desired process pressure and temperature.
– Happy customer from Rourkela, Odisha.

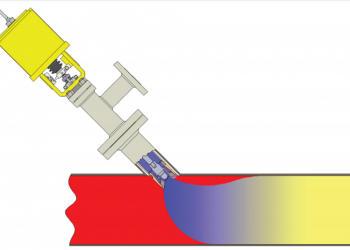

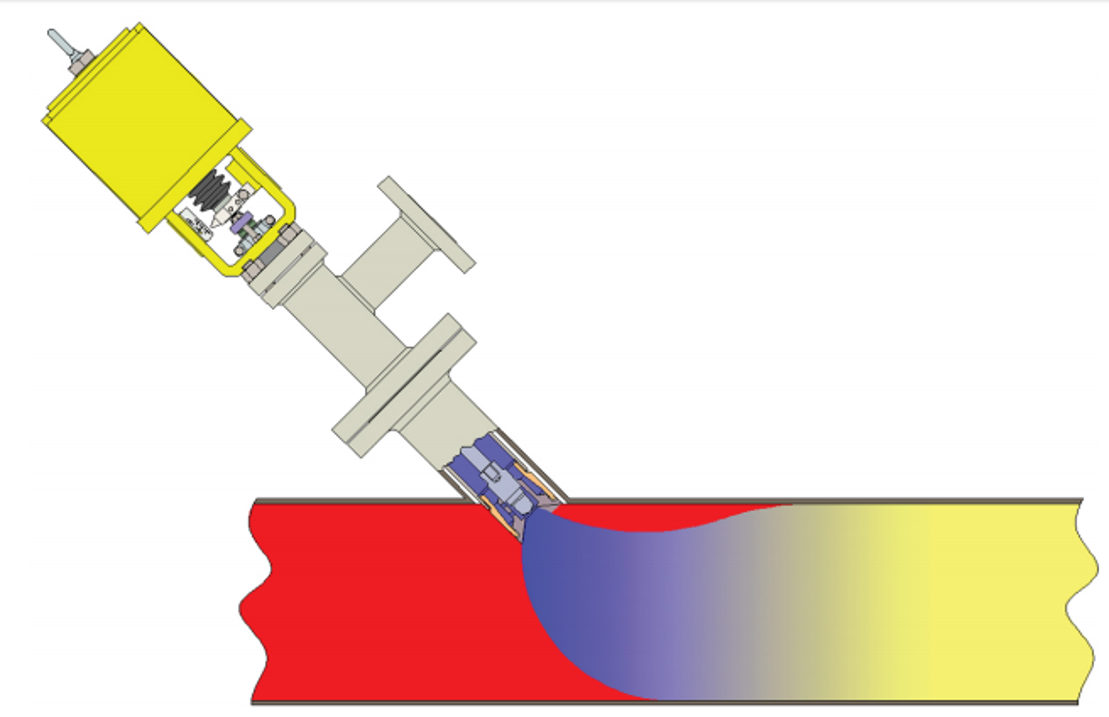

Variable nozzle desuperheaters are best suited for applications involving high load fluctuations. They are designed to control the quantity of spray water at the point of water injection, thereby eliminating the need of a separate water control valve. This is achieved by coupling the desuperheater with an actuator and subsequently varying the number of injection nozzles in operation. Nozzle opening is controlled through precise
positioning of the desuperheater stem in response to feedback from a controller and downstream temperature sensor.
- Completely customized to suit customer pressure temperature parameters
- Can be supplied in Separate/Combined configurations based on technical feasibility
- Various designs of de-superheaters to get a turn down up to 40:1
- Multi step trim on Control valve realizes sub critical pressure reduction
- For all stages – longer life of internals
- The design guarantees controlled water injection with the controlled movement of the trim
- Selection of material of construction to meet the design requirements for longer life
- It maintains steam temperature at the outlet close to saturation temperatureC
- Provided with microprocessor-based control instrumentation
- Suitable for superheated steam to convert it to near saturated condition and at same or reduced pressure.
