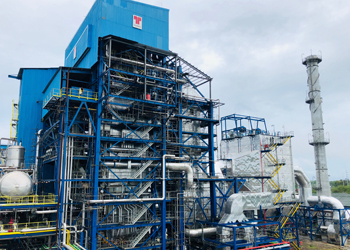

BIOMASS FIRED BOILER

We offer both single-drum and bi-drum variants of this boiler, whose benefits include fuel flexibility, low maintenance, high efficiency, high availability, and reliability.

Over 265 boilers comissioned by TBWES across the globe to meet process steam and power requirements through biomass fuels.
Quote Image

Thermax has a combined experience of more than 50 years and over 2,500 reference installations globally in more than 87 countries.

Unequalled R&D support and unsurpassed experience in the combustion of 150 different types of solid fuels (fossil and biomass) makes Thermax a leader in Innovative boiler technologies.

Manufactured as per Technology developed by Thermax

Product Features
  • Continuous ash discharge
  • Catenary design
  • Precise control of grate speed variation
  • Grate driven by hydraulic/planetary gear with VFD
  • Overlapping grate design prevents air leakages
  • Overfire air system provides turbulence and thorough mixing of volatile gases, assuring complete combustion
  • Online maintenance of grate
  • Three/two stage superheater with inter stage feed water spray attemperator
  • Tall furnace for complete combustion
  • Pinhole grate or pusher grate offered for specific applications
Operating Range
  • Capacities: Up to 300 TPH
  • Design pressure: Up to 135 kg/cm2 (g)
  • Steam temperature: Up to 540ºC
  • Fuels: Bagasse, mustard stalk, cotton stalk, rice husk, coffee grounds, de-oiled bran, wood chips, roasted chaff, lignite, washery rejects, paper sludge, coal

Boiler-Turbine-Generator (BTG) packages can be offered on case-to-case basis.

References

  • Dangchang Bioenergy, Thailand
  • Mitr Phol Group, Thailand
  • Mitr Phol Group, Thailand
  • JGC for Rio Tuba Nickel HPP Project
  • Dhampur Sugars
  • Zuker SA DE CV , Mexico TCC, Thailand
  • Lamsan Power Corporation, Philippines
  • URC, Philippines
  • Bannari Amman Sugars
  • Emperador Distillers, Philippines
  • Bajaj Hindustan
  • Indian Cane Sugar Ltd.
  • Eyra Internacional, Dominican Republic
  • KBS Power Co. Ltd, Thailand
  • Victorias Milling Company, INC, Philippines
  • Korach Industry Company Ltd., Thailand
  • Thai Alcohol Public Company Ltd
