WASTE HEAT RECOVERY BOILERS

We provide energy solutions to utilise waste heat from various processes and applications to improve overall energy balance in ferrous metals, non-ferrous metals, cement, refinery, chemical, oil & gas, glass and other sectors. The offerings include a variety of customised, turnkey solutions to generate steam and power.

With over 1000 installations worldwide, we have earned our reputation  as a proven and reliable  leader in waste heat recovery solutions  in  various industries
Quote Image

Products

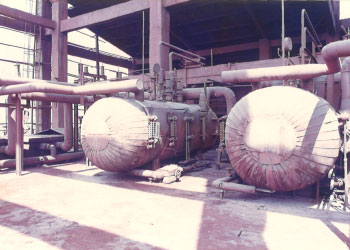

Non-Ferrous Plant

The boilers convert high temperature dust laden waste gases from Non – Ferrous process industries like copper/zinc/lead/aluminium etc. The source of gas could a roaster/smelter/convertor. The waste heat content of these gases can be recovered for generating steam, thus improving the overall energy balance. Boilers designed for this application are usually of the forced circulation type. The high dust load in the gases requires the installation of an online cleaning system.

Manufactured as per Technology developed by Thermax

Product Features
  • Forced circulation water tube design
  • Gas tight side wall of water wall design
  • Wide pitched in-line geometry to prevent choking
  • On-line hammering system
  • Baffles to prevent channeling of gases
  • Provision of cavity followed by variable pitch convection coils
Operating Range
  • Capacities: 10 TPH to 100 TPH
  • Pressure: 45 – 60 kg/cm2 (g)
  • Temperature: Saturated to 400ºC
Product Range
  • Waste heat boiler on zinc pyrite roasters
  • Waste heat boiler on copper smelters
  • Waste heat boiler on the copper convertors

References

  • Birla Copper
  • Cominco Binani Zinc Ltd.
  • Hindustan Copper Ltd.
  • Pyrites Phosphates & Chemicals Ltd.
