Hydrogen generating units are an integral part of any refinery or nitrogeneous fertiliser plant. Hydrogen gas is generated by the reforming route where a hydrocarbon is converted to hydrogen rich stock that is used for hydrogenation of oil or for manufacturing of methanol, ammonia or synthesis gas (used for nitrogeneous fertilisers).
WASTE HEAT RECOVERY BOILERS
TBWES provides energy solutions to utilise waste heat from various processes and applications to improve overall energy balance in ferrous metals, non-ferrous metals, cement, refinery, chemical, oil & gas, glass and other sectors. The offerings include a variety of customised, turnkey solutions to generate steam and power.
With over 1000 installations worldwide, we have earned our reputation as a proven and reliable leader in waste heat recovery solutions in various industries

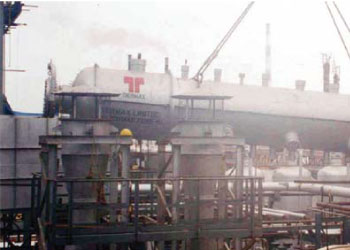

Hydrogen Plant
The gases leaving the reformer need to be cooled before going to the converter. A fire-tube waste heat boiler is provided to cool the process gases coming from the reformer, also known as Process Gas Boilers (PGB). The flue gases leaving the reformer are also a potential source of waste heat and this is also harnessed though water tube or fire tube type of heat recovery boilers and are also integrated to superheat steam as well as preheat the feed stock.
Features
WHR Boiler Based on Reformed Gas/
Process Gas
- Fire-tube boiler construction with flexible tube sheet design
- Alloy steel tubes (T11, T22) used to overcome metal dusting
- Incoloy ferrules anchored in the inlet tube-sheet refractory
- Heat sensitive paint coating on inlet box
- Internal bypass provided with liner to control gas outlet temperature
- Designed for gas rich in H2/CO/CH4; handles high gas-side operating pressures as high as 30 kg/cm2(g)
WHR Boiler Based on Flue Gas/Convection Section of Hydrogen
- Both water-tube and fire-tube type design available
- Designed for heating a variety of fluids
- Common steam drum between flue gas boiler and reformed gas boiler
Operating Range
- Capacity: 30 TPD to 5,000 TPD hydrogen production
- Hindustan Petroleum Corp. Ltd.
- National Peroxides Ltd.
