4 TPH to 25TPH
Solid fuel
Solid fuel
CombiPac
Hybrid boilers engineered for efficient solid fuel combustion and automated operation
Submit your enquirySelect an option

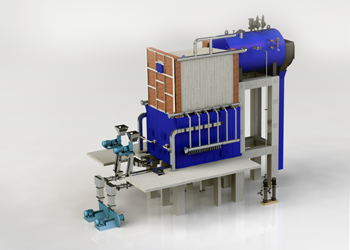

CombiPac is a hybrid smoke and water tube boiler with flexible combustion technologies for reliable steam generation.
It is a hybrid boiler combining smoke tube and water tube design with fluidised bed and reciprocating grate combustion options. Engineered to handle fine fuels with high ash and moisture content, it ensures controlled bed temperatures, uniform heat flux, and efficient combustion. Fully automated operation and quick load response make it suitable for demanding industrial applications.
Technical data
- Operating range: Steam output: 5 TPH to 30 TPH
- Design pressure: 10.54 kg/cm²(g), 17.5 kg/cm²(g), customisable up to 32 kg/cm²(g)
- Fuel type or energy sources: Wide variety of green and conventional fuels, including biomass briquettes, coal, and biomass pellets
- Combustion technology: Reciprocating grate, fluidised bed
Product features
Hybrid boiler configuration
Combined smoke tube and water tube design ensures balanced heat transfer and robust performance
Flexible combustion technologies
Available with fluidised bed or reciprocating grate systems to suit varying fuel characteristics
Handles difficult fuels
Designed to burn fine fuels and coal with high ash and moisture content efficiently
High combustion efficiency
Low excess air operation improves fuel utilisation and overall boiler efficiency
Fully automated operation
Advanced automation enables safe, stable operation with rapid response to load changes
Extended refractory life
Uniform heat flux and optimised air nozzle design reduce thermal stress and enhance durability
