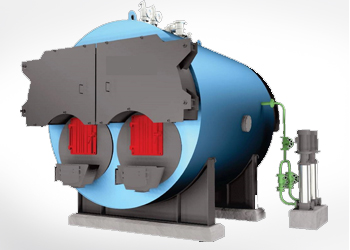

Woodpac is a two-pass, smoke tube boiler that can be fired on wood and optionally on oil .The boiler has a corrugated furnace all along its length. The front end and shell rear end is closed with the help of tube sheets. The flue tubes are fitted between the front and rear tube sheet. The flue tube opens into the smoke chamber. Spirals are provided inside the smoke tube to improve the effectiveness of heating surface. The rear door when opened, gives total access to the furnace, smoke tubes and spiral agitator.
Thermax offers coil type steam boilers in the range of 50 to 850 kg steam per hour. The coil type boiler generates steam instantly and is extremely easy to install and commission. These boilers are safe, reliable and designed to operate on a wide range of liquid and gaseous fuels including heavy oil, light oil, gas, and dual fuel options.
- Low cost heating
- Integral furnace with spirals in the tubes – ensures high rate of heat transfer
- Low stack temperature at boiler outlet
- Hinged smoke chamber, making cleaning of tubes easy, also facilitates settling of ash
- Supplied with forced draft primary air fan
- Provided with secondary air ducting for complete combustion of wood
- Wood fired boiler
- Electrically driven water pumps
- Capacities: 2- 4.5 TPH
- Firing fuels : Wood & optionally oil
